On-Board Charger and DC-DC Converter Combo Unit

$2,495.00

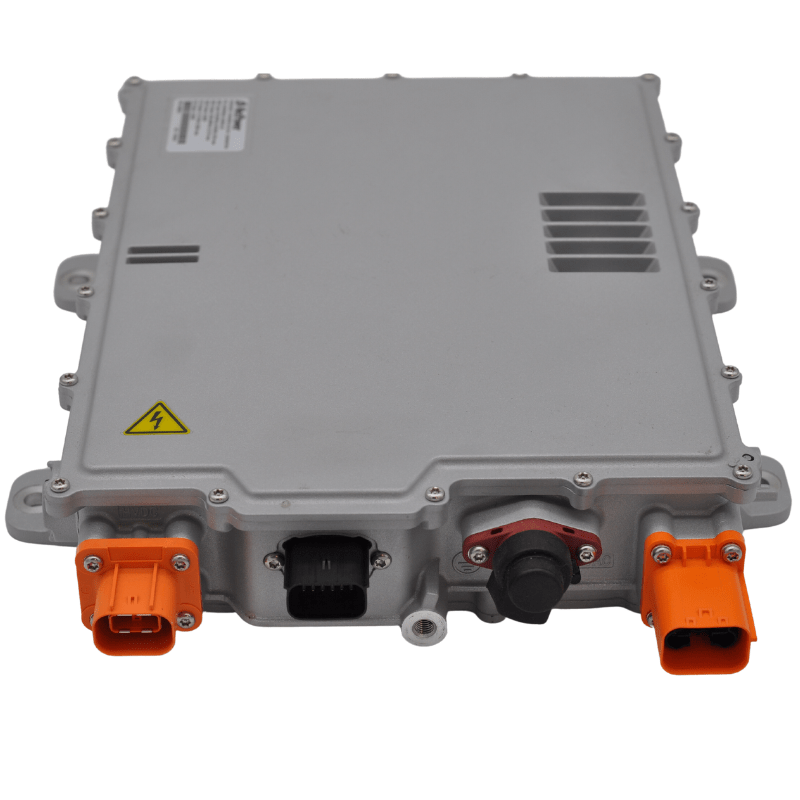

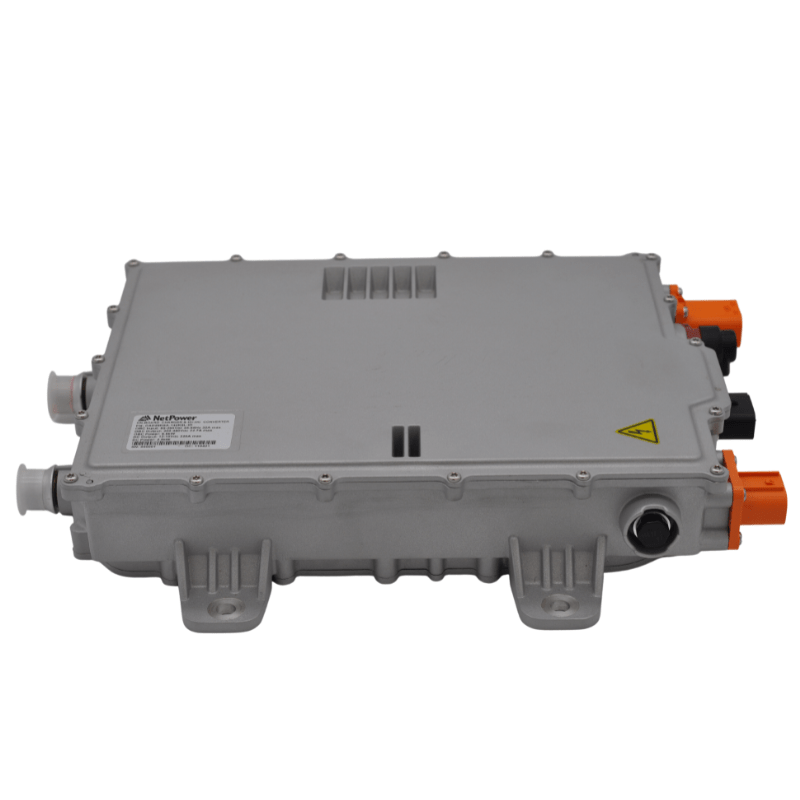

This compact, liquid cooled combo unit is both a 6.6kW On-Board Charger and a 2500W DC-DC converter. It features a CAN2.0B interface and a rugged, fully sealed, cast aluminum enclosure, allowing it to be mounted anywhere on your vehicle without the need for additional protection.





SKU: 9501.0028 Categories: ,

Includes:

  • Mating Connector Kit
  • Coolant Connectors

Features:

·         OBC AC input range: 85-265 Vac
·         DC-DC Input Range: 200-480 Vdc
·         High efficiency and high reliability
·         Input and output protections
·         Intelligent charging mode
·         CAN2.0B interface (500kbps baud rate)
·         Bootloader via CAN bus
·         Compliance with SAE J1772/IEC 61851-1
·         IP67 enclosure, liquid cooled



Weight 20 lbs
Dimensions 17 × 13 × 4 in
