This is a Pre-Order for our REPOWER Battery System. By checking out with this product in your cart you will be put on the order list on a REPOWER battery system of your choice. We will begin shipping battery systems Q4 of 2024 in the order in which the orders were received. The 76kWh system is not yet available for pre-order, if you’d like to express your interest feel free to contact us.

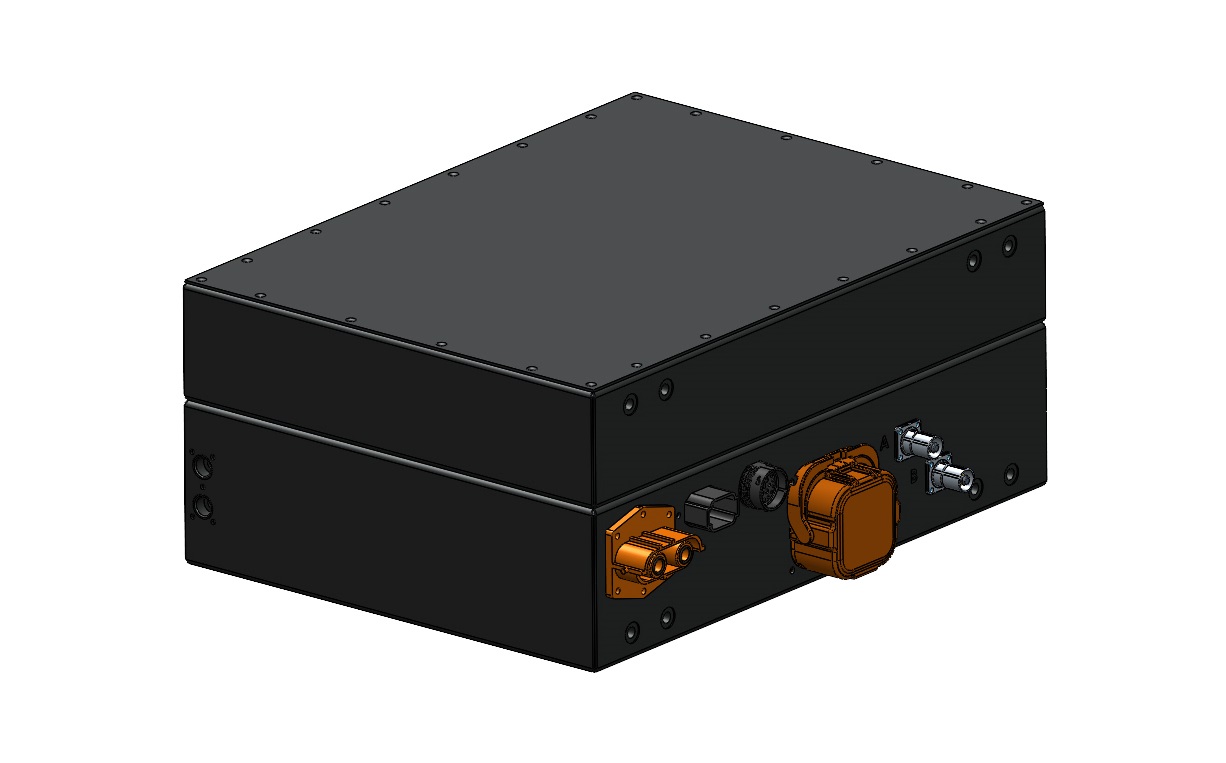

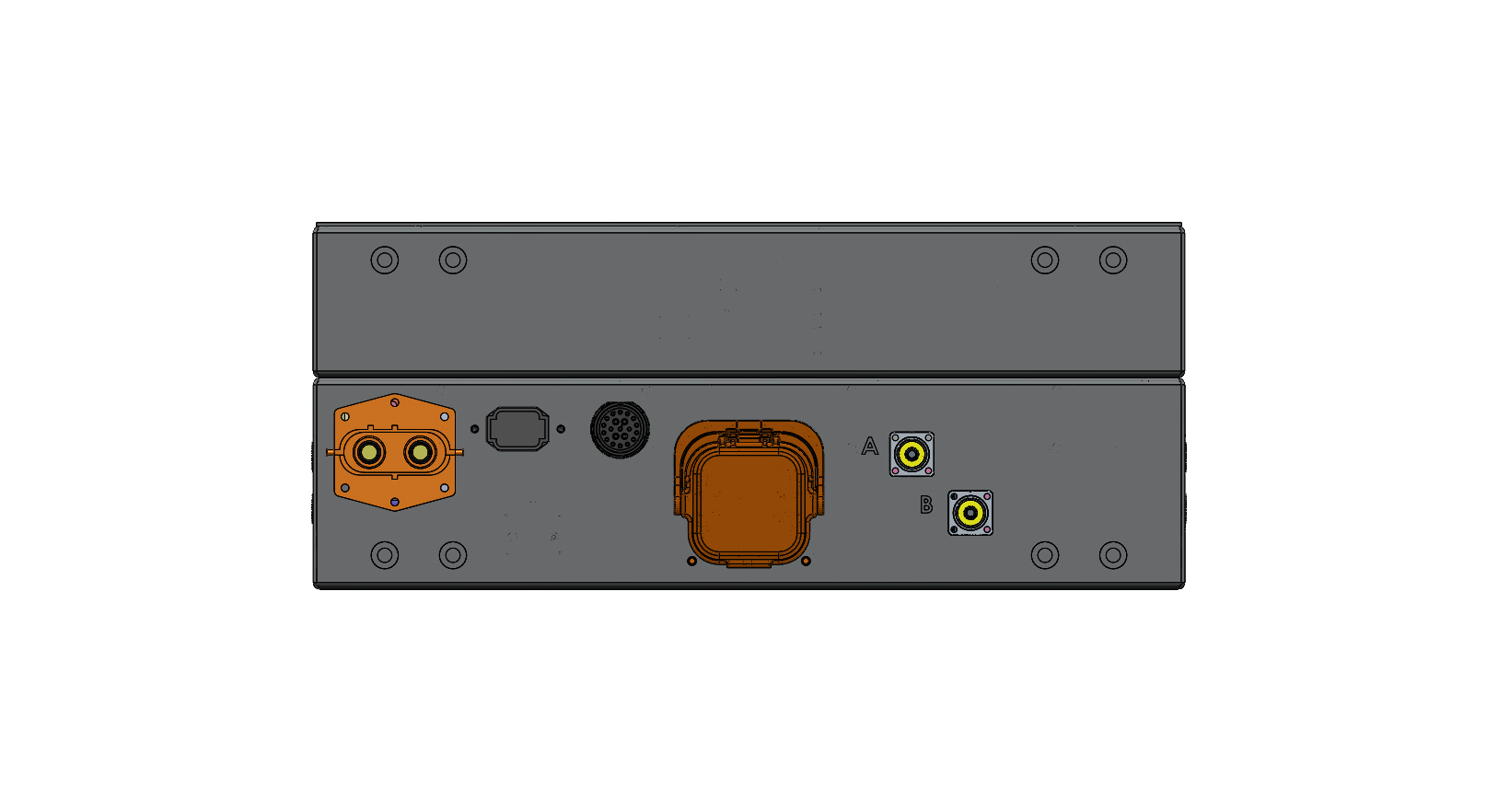

Battery System Specifications:
General
- IP65 Rated
- Box Dimensions: 25.55″ x 19″ x 11″ H (Not including connectors)
- Weight: 280lbs per box
Cooling
- Liquid cooled 50/50 Glycol Mix
- Dual coolant ports on each end with 3 ways to connect to your cooling loop
Safety
- High Voltage interlocked connectors between each box, and on the main output
- Removable disconnect with integrated fuse
- Internal electrical disconnect (contactors) in each box
- Keyed HV connectors so that the boxes cannot be connected incorrectly
Internal Battery Management (BMS)
- Voltage monitoring
- Thermal monitoring
- Interlock monitoring
- Current monitoring
- SOC Calculation (% Charge) based on both coulomb counting and OCV values
| 2 Box System | 3 Box System | 4 Box System | |
| Total Capacity | 38kWh | 57kWh | 76kWh |
| Nominal Voltage | 355V | 355V | 355V |
| Charged Voltage | 403V | 403V | 403V |
| Peak Power | 151kW | 226kW | 301kW |
| Max Discharge Current (10s) | 420A | 630A | 840A |
| Max Charge Current (10s) | 310A | 470A | 630A |
| System Weight (280lbs/box) | 560lbs | 840lbs | 1120lbs |
