Orion BMS 2
Orion BMS 2 - Image 2
Orion BMS 2 - Image 3

Orion BMS 2

$1,580.00 – $2,150.00

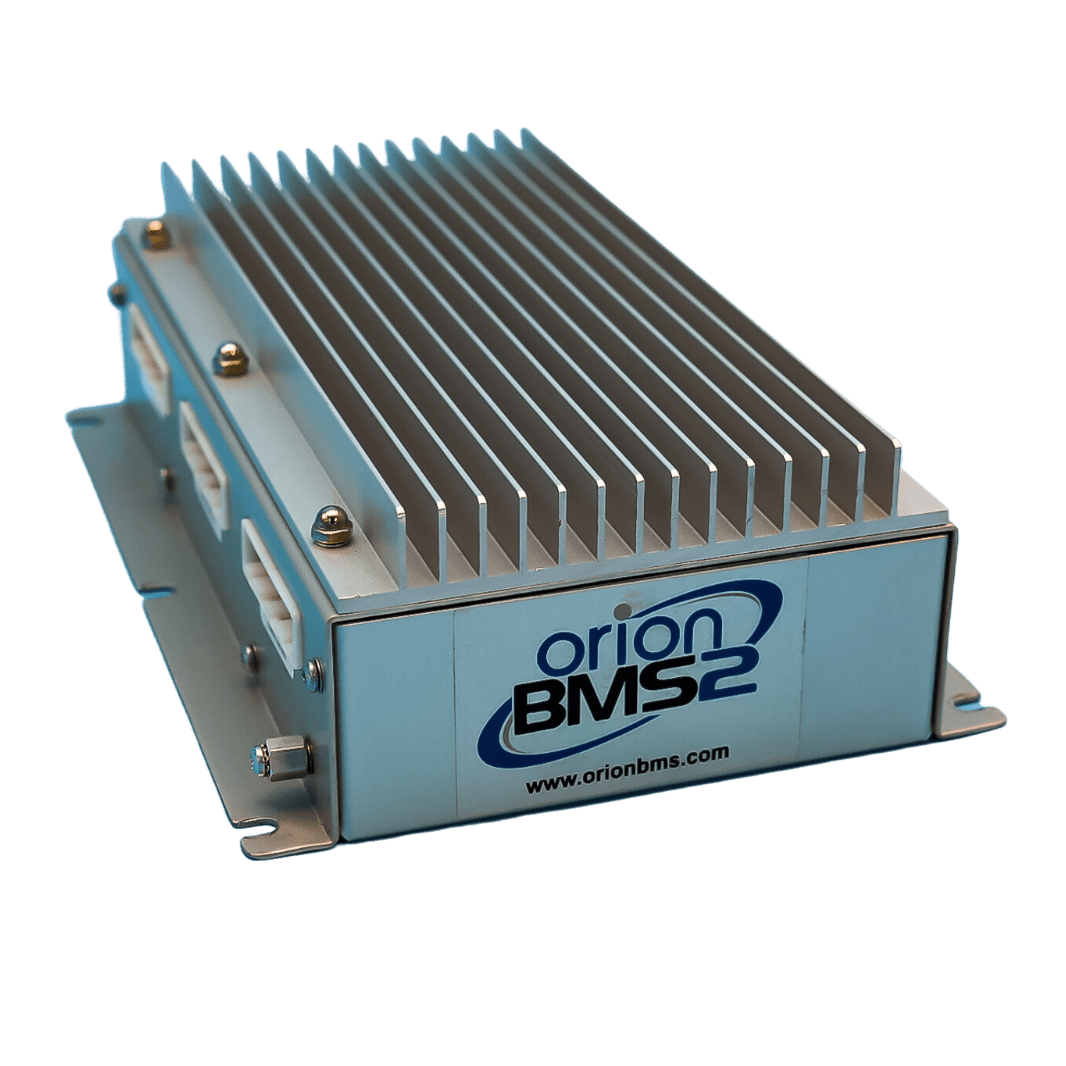

Orion Battery Management System from Ewert Energy is a robust, full-featured BMS that is specifically designed to handle the rigors of on-road and off-road automotive use. It provides both digital and analog outputs to control chargers, motor controllers, and other external devices like cooling fans or heaters. The Orion BMS is field programmable with two CAN interfaces and OBD-II support for retrieving data logs, trouble codes, or snapshots as faults occur in the field with OBD-II scan tools.



SKU: N/A Category:

Kit includes:

– BMS Main Input/Output Wiring Harness
– Cell Tap Harness
– CANdapter
– Current Sensor

Key Features:

– Direct hardware support for several popular charging protocols including SAE J1772 (directly interfacing with the pilot/ proximity lines)
– Wide input power voltage range (now 12v-24vDC compatible) for better support on heavy vehicles and equipment.
– Thermal Management
– Current and Voltage Protection
– Smart Cell Balancing and State of Charge via Coulomb Counting
– Internal Resistance Data Advance
– Isolation Fault Detection
– User Interface

Weight 5 lbs
Dimensions 10 × 7 × 3 in
Number Of Cells In Series

48, 96

Documents
